BN623

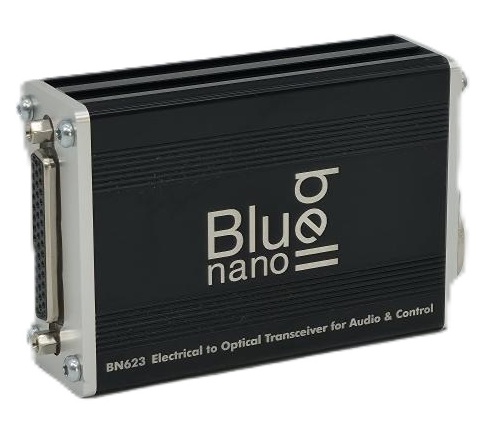

Electrical <> Optical Transceiver for Audio & Control

BN623 Datasheet Download PDF

The BN623 is designed to connect remote intercom panels back to a central routing position, providing bidirectional analogue audio and serial control data over fibre. Its robust construction makes it ideal for OB and flypack applications, with variants available in multimode, singlemode, and CWDM to suit different system requirements. The unit can be powered using a Bluebell PS12 or standard on-site DC supply, and a complementary BC Series card is available for 19″ rack-based installations, ensuring seamless integration with existing systems.

  • The BN623 is specifically designed to link remote panels in an intercom system back to the main central routing position.
  • The robust design allows the unit to be deployed in OB or flypack applications.
  • Can be supplied in multimode, singlemode, and CWDM variations to suit all applications, offering a perfect complement to the BC323, BC550, and BC323-63 modules.
  • Power can be supplied direct to the unit from the standard Bluebell PS12 or any readily available DC supply found on-site.
  • A complimentary modular BC Series card is also available when a 19” rack-based solution is required.

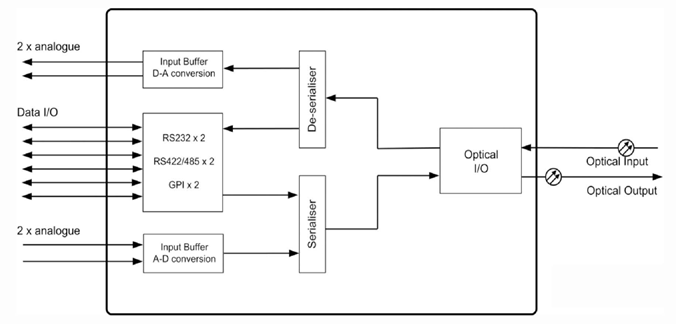

  • The BN623 provides bidirectional analogue audio and serial control data over fibre.
Electrical Input/Audio
Connector 44 pin D connector
Format 2 x analogue audio1, 20 Hz– 20 kHz ± 0.3 dB

2 x RS232 Bi-directional

2 x RS422/485 Bi-directional

2 x GPI Bi-directional
Optical Output
Connector









Optical specifications determined by SFP
TX wavelength and power plus receive sensitivity are defined by the SFP fitted. Typical values are outlined below
RX Wavelength
RX Sensitivity
Max I/P power
Note



General Card Specification
Depth 92mm
Width 64mm
Height 30mm (Excluding Connectors)
Weight 100g
Operating Temp -30 to+70°C
Power 2.5  W
Conformance
EMI/RFI Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11
Electrical Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
Laser Safety Dependent on SFP fitted. Complies with Class 1 laser product
RoHS Complies with Directive 2002/95/EC
Warranty 5 Years
BC623/M Multimode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. Fitted with LC connectors. Includes PS12 power supply
BC623/S/13/WB Singlemode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (1310 nm TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply.
BN623/S/13/15 Singlemode Single Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibre. (1310 nm TX). Used in conjunction with BN623/S/15/13 as a matched pair. Fitted with LC connectors. Includes PS12 power supply.
BN623/S/15/13 Singlemode Single Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 1 fibres. (1550 nm TX). Used in conjunction with BN623/S/13/15 as a matched pair. Fitted with LC connectors. Includes PS12 power supply.
BN623/S/CWDM/xx/WB Singlemode Dual Fibre Audio and Data Fibre Optic Transceiver Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over 2 fibres. (CWDM TX and Wideband receiver). Fitted with LC connectors. Includes PS12 power supply.
BN623 Audio and Data Fibre Optic Transceiver Base Module. Provides 2 x analogue audio, 2 x RS232, 2 x RS422/485 and 2 x GPI over fibre. No Optics Fitted. Includes PS12 power supply.
Discuss BN623 variants Open PDF
