Racketeer-12G

12G-SDI Electrical to/from Optical Conversion

Contact Download Datasheet PDF

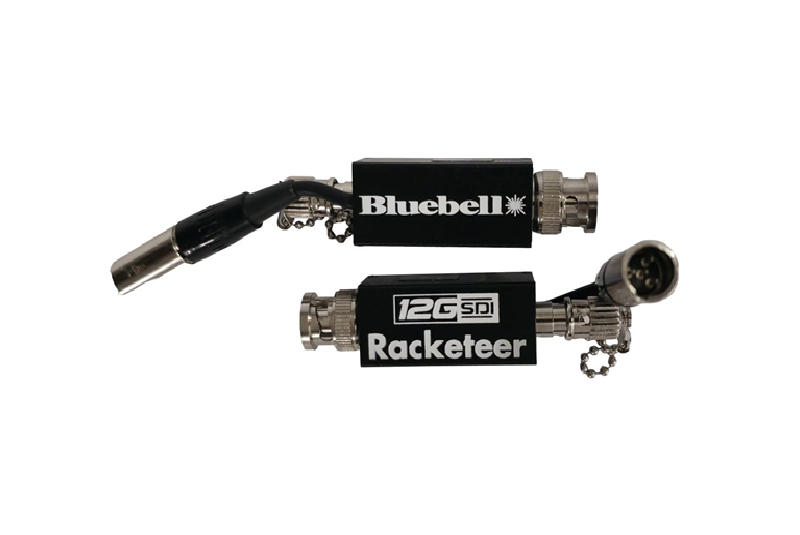

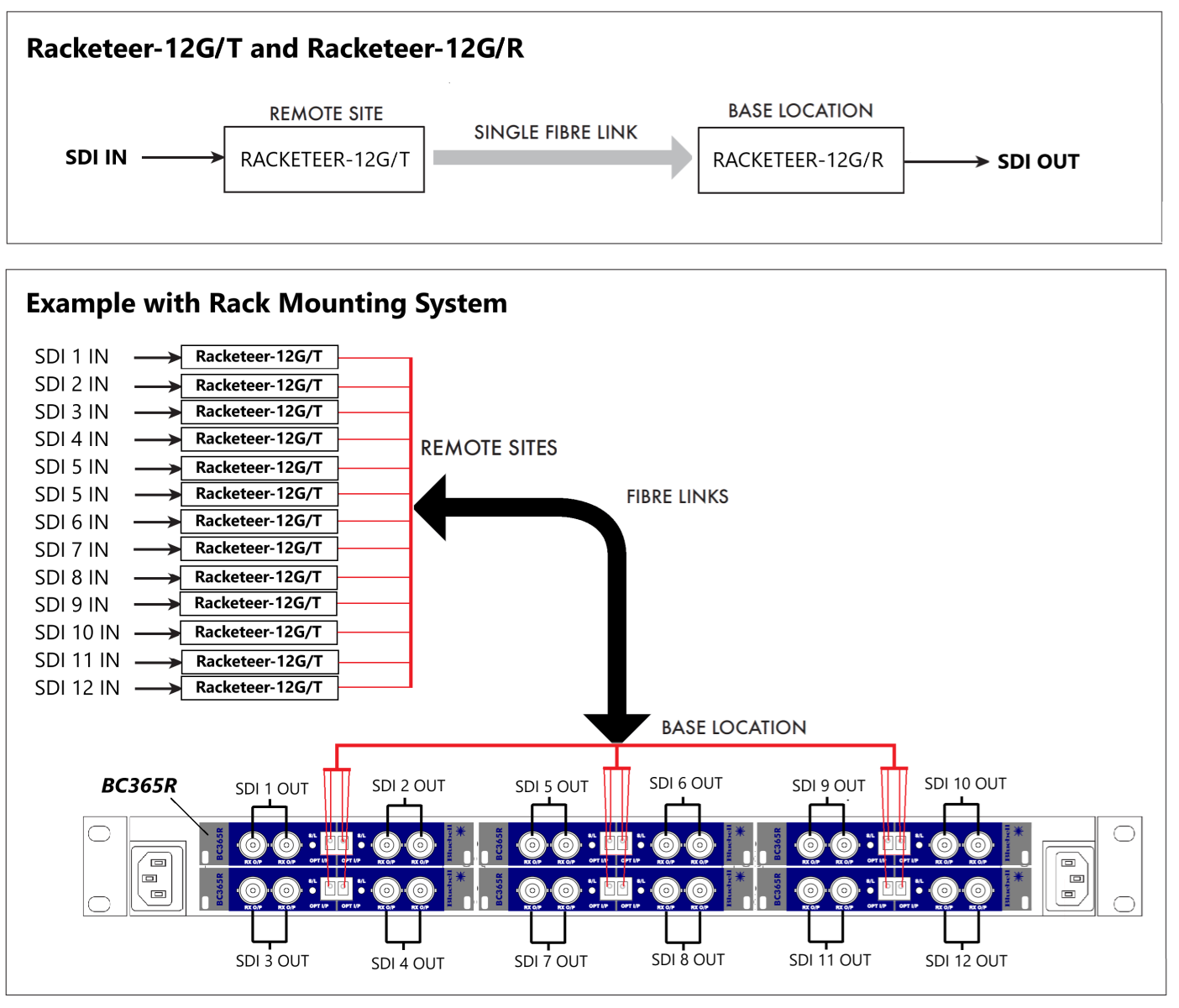

The Racketeer-12G is a robust and versatile solution for high-performance electrical-to-optical and optical-to-electrical signal conversion. It supports a wide range of SDI standards, including 12G-SDI, 3G-SDI, HD-SDI, and SD-SDI, while also being compatible with ASI and MADI signals. Designed to handle data rates from 50 Mb/s to 12 Gb/s, it ensures reliable signal transmission for professional broadcast and production environments.
Equipped with integrated signal reclockers, the Racketeer-12G delivers enhanced performance by maintaining signal integrity over long distances. Using a single-core optical fibre, the device achieves forward transmission of 12G-SDI video signals without delay or compression, maintaining exceptional signal quality over distances of up to 10 km on singlemode fibre.
  • Integrated signal reclockers for enhance performance
  • Supports data rates from 50 Mb/s to 12 Gb/s
  • Reliable solution for broadcasters, AV professionals
  • Durable for live, studio, outdoor use
  • Plug and play setup with no configuration, simple and efficient
Electrical Input
Connector
75 Ohm BNC per IEC 60169-8 Amendment 2
Standards
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 292, SMPTE ST 259,  DVB-ASI
Polarity
Non-inverting
Equalisation
Automatic rate detection and cable equalisation
75m @ 11.88Gbps
120m @ 5.94Gbps
200m @ 2.97Gbps
300m @ 1.485Gbps
600m @ 270Mbps
Electrical Output
Connector
75 Ohm BNC per IEC 60169-8 Amendment 2
Standards
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 292, SMPTE ST 259,  DVB-ASI
Polarity
Non-inverting
Signal Level
800 mV +/- 10%
DC Offset
0 +/- 0.5 V
Optical Input*
Connector
 ST
Standards
SMPTE ST 297
Sensitivity
 -12dBm
Optical Output*
Connector
 ST
Standards
SMPTE ST 297
Wavelength 1310nm (other wavelengths available – contact sales)
Power
 0~-3dBm
Power
 Power Supply 5V DC via mini XLR4
Uboyt Voltage 100VAC ~ 242VAC, 50-60Hz
Power Dissipation <1.5W
Overload Protection Provided
Over current Protection Provided
General
Dimensions (HxWxD)
17 x 80 x 17mm
Weight
90g
Operating Temperature
-20 to +75°C
Relative humidity 5% to 95% (non-condensing)
Racketeer-12G/Kit Comprises of 1 transmitter and 1 receiver in a ruggedised carry case. Includes Power Supplies.
Racketeer-12G/T
 Single Channel 12G/6G/3G/HD/SD-SDI Electrical to Optical Transmitter. Includes Power Supply.
Racketeer-12G/R Single Channel 12G/6G/3G/HD/SD-SDI Optical to Electrical Receiver. Includes Power Supply.
Discuss Racketeer-12G variants Open Datasheet PDF
