BN324

Dual 12G-SDI Electrical to/from Optical Conversion

BN324 Datasheet Download PDF

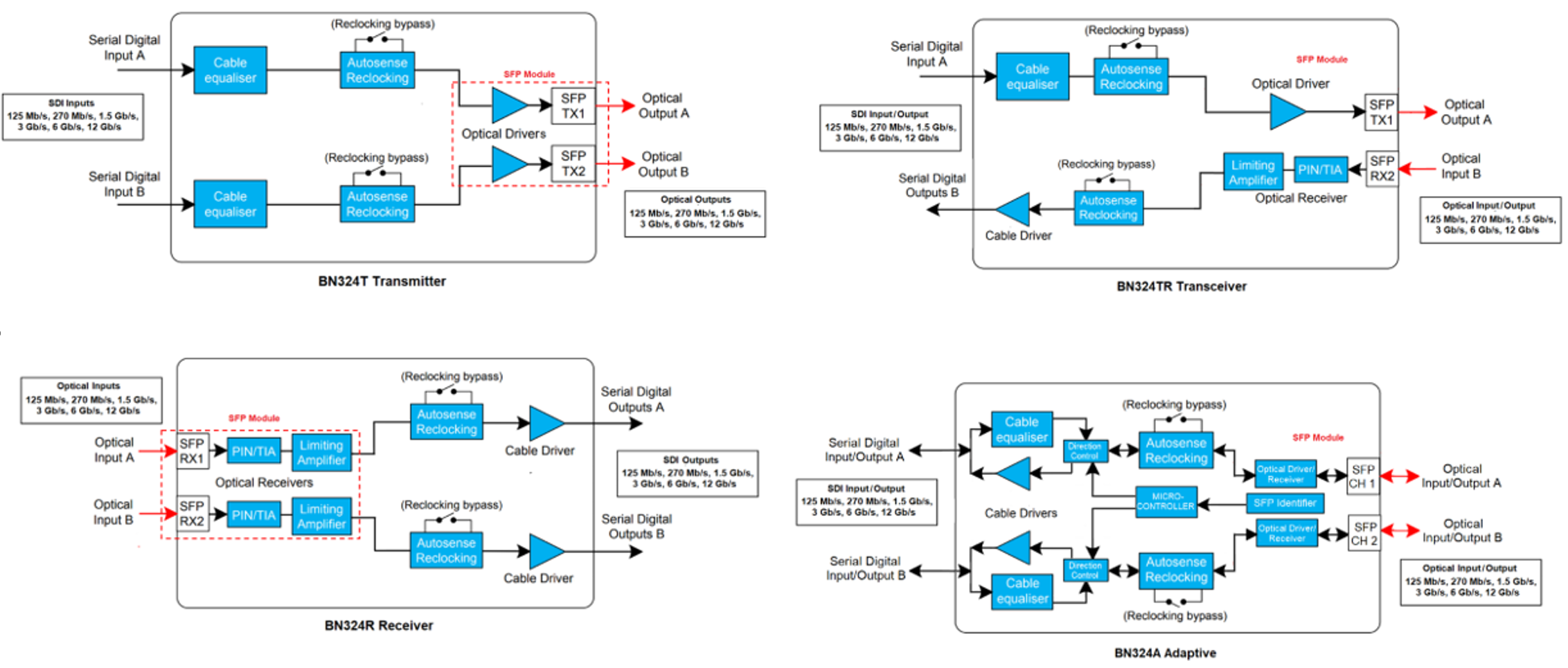

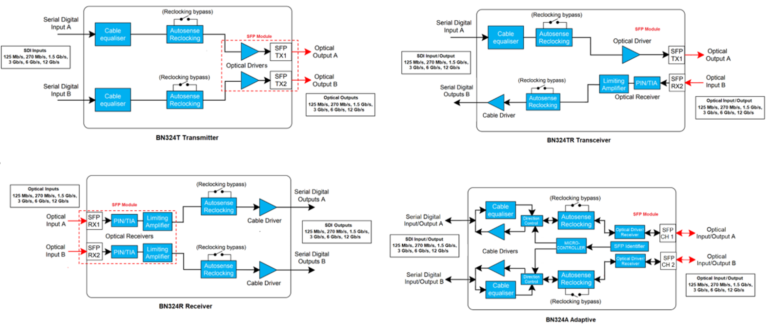

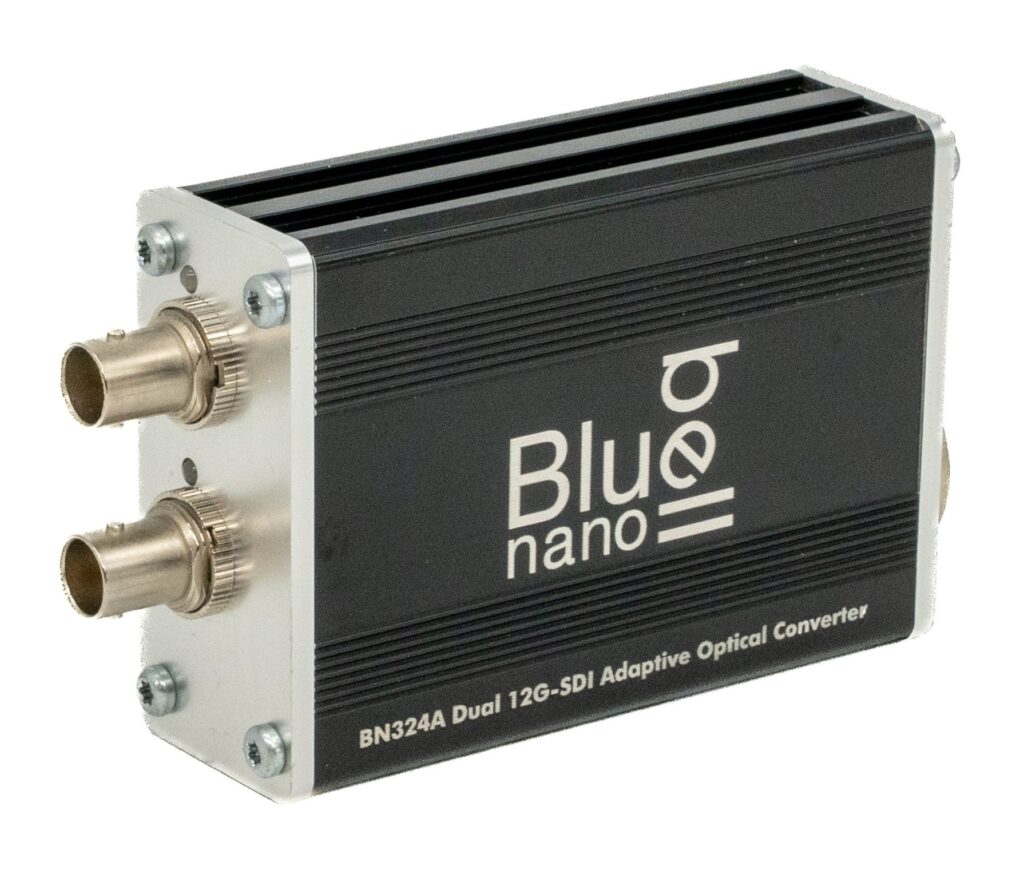

The BN324 range consists of compact, stand-alone fibre interfaces designed for OB and live production applications up to 4K. It supports SD, HD, 3G, 6G, and 12G-SDI video transmission over fibre and can also be used to transport MADI data. Each unit features two BNC connectors for copper I/O and a dual SFP optical interface. The range includes the BN324T (dual-channel transmitter), BN324R (dual-channel receiver), BN324TR (one transmit and one receive channel), and the BN324A, an adaptive version that automatically configures as a dual transmitter, dual receiver, or transceiver depending on the SFPs installed.

  • Dual channel electrical to/from optical conversion for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and ASI signals
  • Supports data rates from 50 Mb/s to 12 Gb/s
  • Integrated signal reclockers for enhance performance
  • 4-pin XLR power connector, ensuring reliable power supply
  • CWDM variants available for extented fibre applications
  • Compact, durable and robust enclosure
  • 5 year warranty
Electrical Input
Connector 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel
Return Loss > 15 dB @ 1.485 GHz

<-10dB to 3GHz

<-7dB to 6GHz

<-4dB to 12GHz
Standards SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424,

SMPTE ST 292, SMPTE ST 259, DVB-ASI
Equalisation Automatic rate detection and cable equalisation

70m @ 11.88Gbps

90m @ 5.94Gbps

170m @ 2.97Gbps

240m @ 1.485Gbps

400m @ 270Mbps
Electrical Output
Connector 75 Ohm BNC per IEC 60169-8 Amendment 2
Return loss <-15dB to 1.485GHz

<-10dB to 3GHz

<-7dB to 6GHz

<-4dB to 12GHz
Standards SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424,

SMPTE ST 292, SMPTE ST 259, DVB-ASI
Polarity Non-Inverting
Signal level 800 mV +/- 10%
DC Offset 0 +/- 0.5 V
Optical Input
Connector





Optical specifications determined by SFP
Wavelength
Standards
Sensitivity @12G
Sensitivity @<=6G
Receiver Overload
Optical Output
Standards











Optical specifications determined by SFP
Power
Conformities
Laser safety
RoHS
Power
Connector
Voltage
Power
General
Dimensions (HxWxD)
Weight
Operating Temp



BN324T/S/12G/13/13 Singlemode Dual Channel 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Transmitter

Module, Auto-Sensing for SDI, ASI, HD/SDI, 3G/SDI and 12G/SDI (2x

1310nm). Fitted with LC connectors. Includes PS12 power supply
BN324T/12G/S/CWDM Singlemode Dual Channel 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Transmitter

Module, Auto-Sensing for SDI, ASI, HD/SDI, 3G/SDI and 12G/SDI

(CWDM). Fitted with LC connectors. Includes PS12 power supply.
BN324R/S/12G Singlemode Dual Channel 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Receiver

Module with Dual Outputs, Auto-Sensing for SDI, ASI, HD/SDI, 3G/SDI and

12G/SDI. Fitted with LC connectors. Includes PS12 power supply.
BN324TR/S/12G Singlemode 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Transeiver Module

12G/SDI/3G/SDI. Fitted with LC connectors. Includes PS12 power supply
BN324T



 Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module,

Auto-Sensing for SDI, ASI, HD/SDI, 3G/SDI and 12G/SDI (1310nm). No Optics

Fitted. Includes PS12 power supply
BN324R Singlemode Dual Channel 3G/SDI, HD/SDI Fibre Optic Receiver Module, Auto-

Sensing for SDI, ASI, HD/SDI, 3G/SDI and 12G/SDI. No Optics Fitted.

Includes PS12 power supply.
BN324TR Singlemode 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Transeiver Module

12G/SDI/3G/SDI. No Optics Fitted. Includes PS12 power supply.
BN324A Singlemode Adaptive 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Transeiver Module

12G/SDI/3G/SDI. Includes PS12 power supply. No Optics Fitted
Discuss BN324 variants Open PDF
