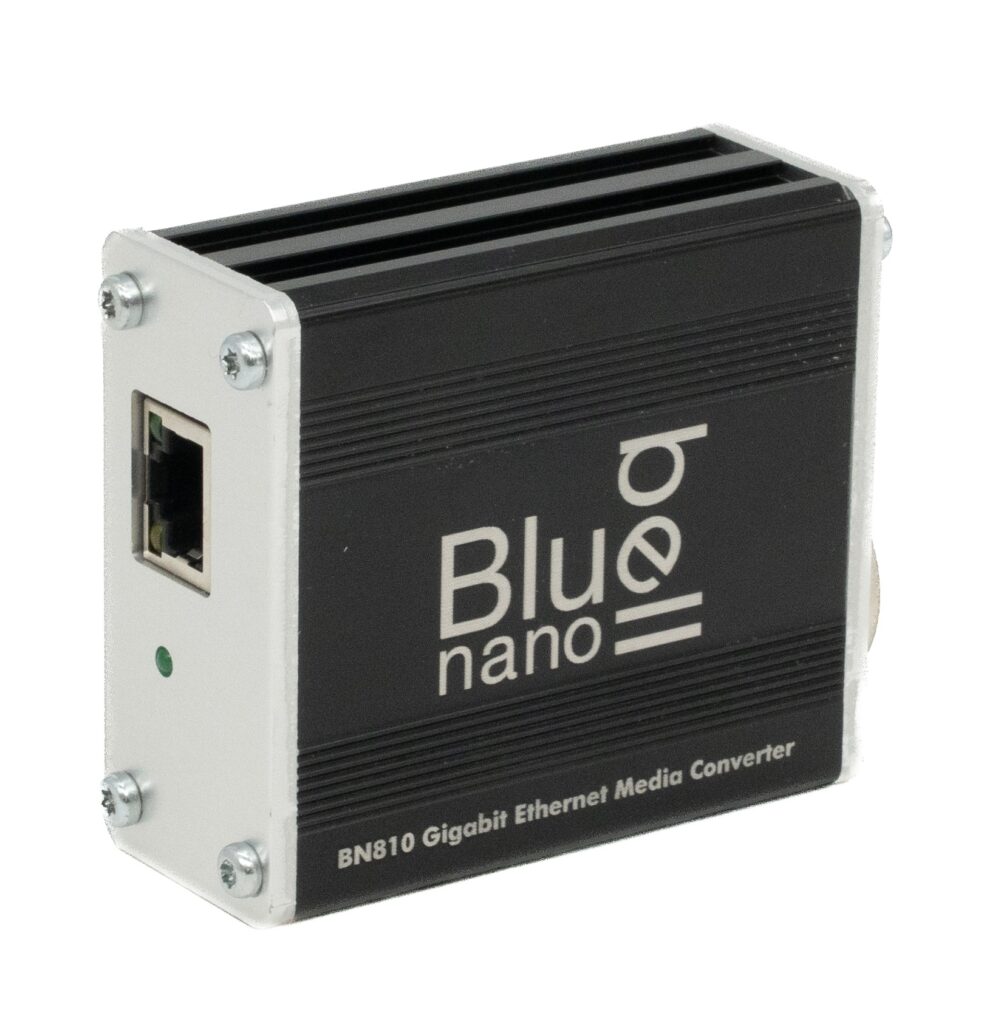

BN810
Multi-rate Ethernet to Fibre Converter

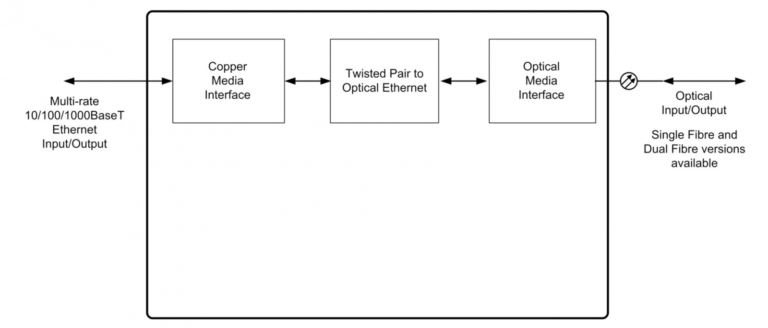

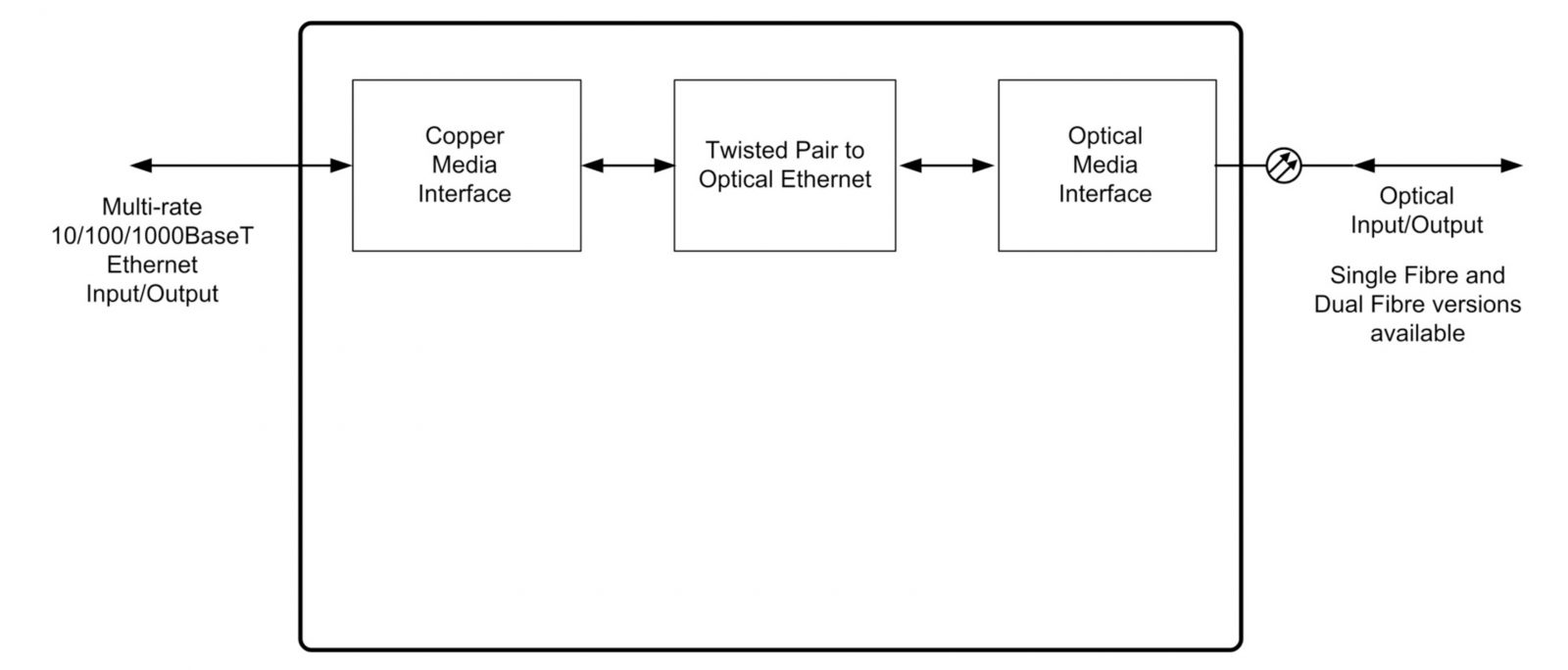

This copper-to-fibre Ethernet media converter supports 10/100/1000Base-T Ethernet and converts to 100Base-FX or 1000Base-X optical formats, enabling reliable network extension over fibre. It features data isolation transformers, clear LED status indicators, and is available in multimode, singlemode, and CWDM variants, with options for dual-fibre or single-fibre operation. Designed for demanding environments, the rugged enclosure makes it suitable for OB and live production applications, with transmission distances of up to 120 km achievable using appropriate SFPs.
- Copper twisted pair to fibre optic media converter.
- Supports 10Base-T, 100Base-T, or 1000Base-T Ethernet data.
- Converts to 100Base-FX or 1000Base-X optical format.
- Includes data isolation transformers for input and output.
- LED indicators for power, network, and fibre activity.
- Available in multimode and singlemode variants.
- Options for full duplex over two fibres or single fibre operation.
- Distances up to 120 km achievable with appropriate SFP.
- CWDM versions available to meet ITU G.694.2 grid specifications.
- Suitable for OB applications with rugged enclosure design.
| Electrical Input/Output | |
| Connector | RJ45 |
| Number | 1 |
| Format | Full Duplex 100/1000Base-FX Data Transmission
10/100/1000BaseT half/full duplex auto-negotiation |
| Standard | IEEE 802.3
802.3 10 BaseT 802.3u 100 BaseT 802.3ab 1000 BaseT |
| Optical Input/Output | |
| Connector |
Optical specifications determined by SFP |
| Wavelength | |
| Standard | |
| Optical Power | |
| Sensitivity | |
| Max I/P Power | |
| Conformance | |
| EMI/RFI | Complies with 89/336/EEC |
| Electrical | Complies with EN 61000-6-1, EN61000-6-2 |
| Laser safety | Complies with Class 1 laser product 24 CFR 1040.10 &1040.11 |
| RoHS | Complies with Directive 2002/95/EC |
| Warranty | 5 Years (1 year on SFPs) |
| BN810S/2/13/LH | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fi bre Converter Card (1310nm). 40km Long Haul Transceiver |
| BN810S/2/CWDM/xx/WB | Singlemode Dual Fibre 10/100/1000BaseT Ethernet to 1000Base-EX Fibre Converter Card (CWDM). CWDM 40km Long Haul Transceive |
| BN810S/13/15
|
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter Cards (1310nm). Used in conjuncti on with BC860/S/15/13 as a matched pair |
| BN810S/15/13
|
Singlemode Single Fibre 10/100/1000BaseT Ethernet to 1000Base-LX10 Fibre Converter Cards (1550nm)
Used in conjunction with BC860/S/13/15 as a matched pair. Fitted with LC connectors as standard |
| BN810 | 10/100/1000BaseT Ethernet to 1000BaseT fibre Converter module – No optics Fitted |
